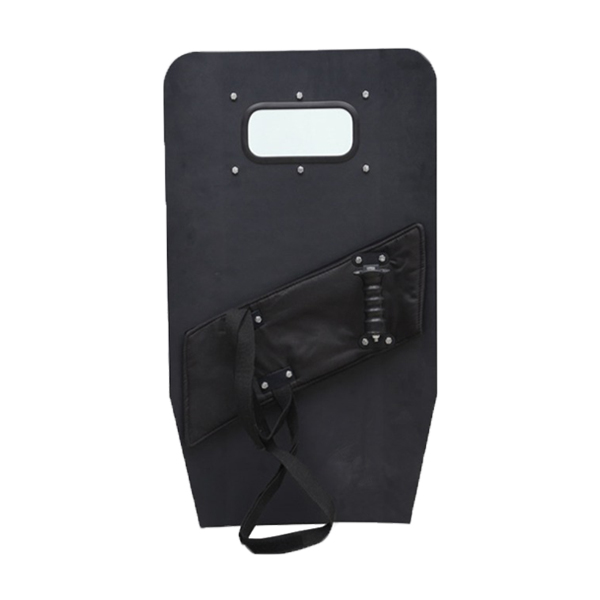

Body armor steel ballistic shield ballistic riot shield

This body armor steel ballistic shield is designed with steel panel, observation window, shock-proof handle, shock-absorbing sponge, and rope strap. this shield is active and flexible in defense, easy to disassemble, reasonable in protection area, and strong in initiative. It is used to deal with sudden violence, patrol and anti-riot, financial escort and other scenes.

Products Details

Detailed Description

As a good partner of the secret service personnel, bulletproof shields have appeared in exercises, training and actual combat occasions for many times. Although the bulletproof shield hinders the reaction of the actor due to its large mass in a sense, it can indeed provide a guarantee for the life safety of the operator with a larger protective area. , bulletproof shield definition A bulletproof shield refers to a hand-held or wheeled plate-type device that protects part or all of the human body and prevents the penetration of projectiles or fragments. The standard requires that the bulletproof shield material should be non-toxic and have no natural harm to the human body to ensure the safety of the user during use. At the same time, when the material used in the bulletproof shield is shot, it should not burn. It may encounter flames and other phenomena in the process of violent and calming. Therefore, the outer surface of the shield should be flame retardant, and its afterburning time should be less than or equal to 10s. The inner and outer surfaces of bulletproof shields should be free of scratches, missing corners, cracks, air bubbles, welding slag, oil stains and sharp protrusions. The outer edge of the shield should be smooth and free of burrs. The mass of the hand-held shield should not be greater than 6kg, and the mass of the wheeled bulletproof shield should not be greater than 28kg. The protective area of ​​the hand-held shield should not be less than 0.12㎡, the protective area of ​​the wheeled bulletproof shield should not be less than 0.48㎡, the minimum side length of the rectangular hand-held bulletproof shield should not be less than 350mm, and the minimum side length of the rectangular wheeled bulletproof shield should not be less than 350mm. Less than 500mm, the height of the shield body from the ground is not more than 50mm.

Parameter

. Item No. : body armor steel ballistic shield . Size: 900*500mm . Thickness: 2.4mm . Weight: 8.85kg . Material: bulletproof steel . Bulletproof area: 0.45㎡ . Level: NIJ IIIA . Impact resistance: meets the standard 147J kinetic energy impact . Puncture resistance: standard GA68-2003 experimental knife . Grip connection strength: ≥500N . Armband connection strength: ≥500N . The observation window is designed with a transparent PC panel, which effectively increases the field of vision and prevents liquid splashing. . The shockproof handle is fixed by 4 screws to attenuate the impact force, the handle is stronger and the reliability is stronger. . The thick shock-proof sponge layer can effectively attenuate the impact force, making it safer and more reliable.
